Custom Electrical Enclosures, Manufactured in the UAE
Ideal Design builds custom electrical enclosures for panel builders, EPC contractors and OEMs across the GCC. Made in our ISO 9001 certified Ajman factory, sealed to IP65 under IEC 60529, with lead times from 3 weeks out of the UAE.
What do we mean by a custom electrical enclosure?
A custom electrical enclosure is a housing fabricated to your exact dimensions, cutout plan and environment rating rather than picked from a catalogue. That matters when your gear layout, cable entries or site conditions refuse to fit a standard box: you get the enclosure the installation actually needs, without compromise or wasted volume.

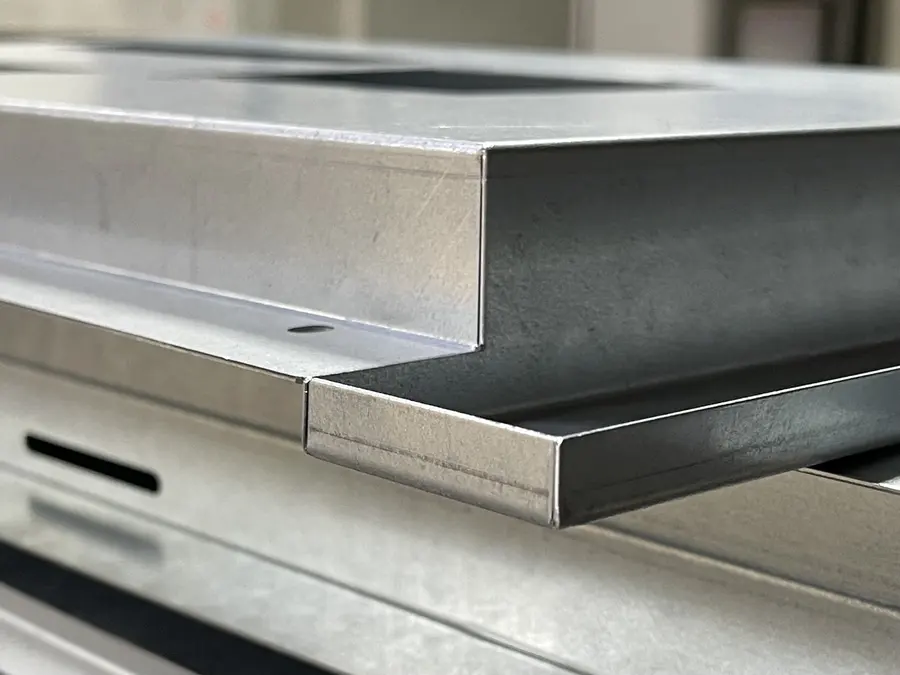

Every enclosure starts as a controlled drawing, yours or ours. Our design engineers check bend radii, corner reliefs, weld access and coating hang points before a single sheet is cut, then the same factory laser cuts, punches, folds, welds, coats and assembles the finished unit. One roof, one revision controlled drawing, one accountable team.
Because the whole chain is in house, changes stay cheap and fast. A revised gland plate or a new cutout is a drawing revision and a nesting update, not a renegotiation with three subcontractors.
Every unit starts on paper.
The drawing below is the kind of document every enclosure ships against: dimensioned views, notes, tolerances and finish spec, controlled under revision.
Enclosure specifications at a glance.
| Attribute | Specification | Notes |
|---|---|---|
| Range | Wall mount and floor standing | Single and double door, glazed or solid |

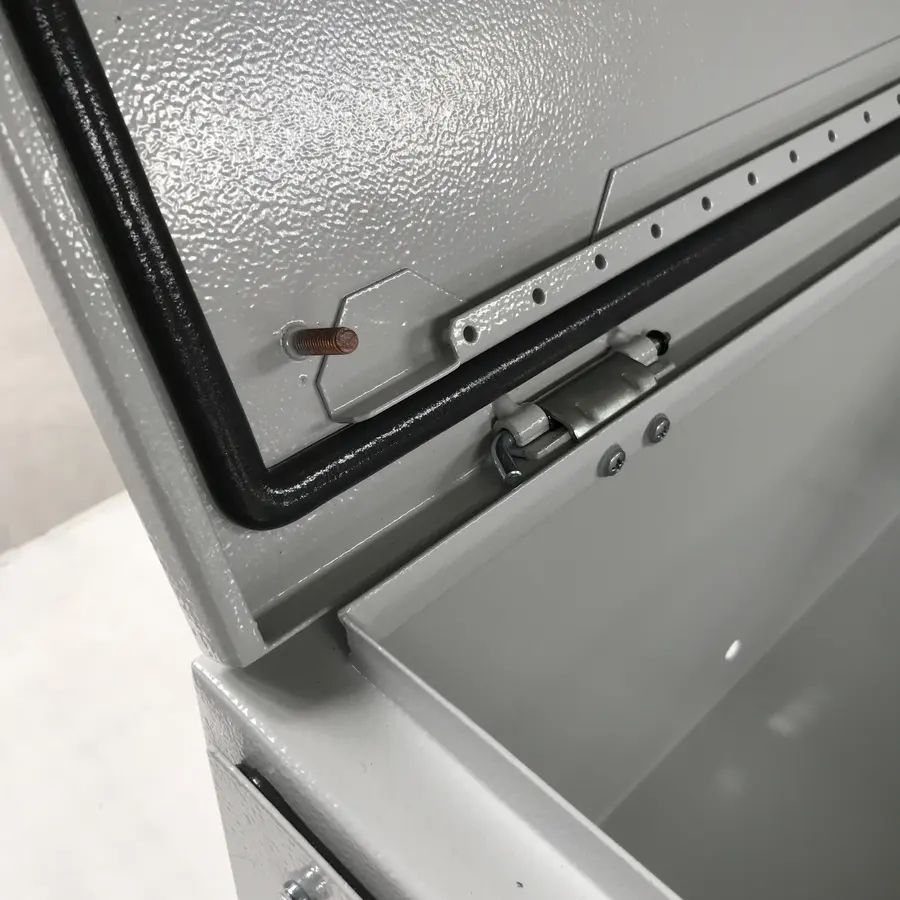

| Ingress protection | IP65 (IEC 60529) | Formed PU gasket, gasketed gland plates top and bottom |
| Materials | GI · CRCA · SS304 / SS316 · Aluminium | Laser cut to 10 mm MS and 6 mm SS |
| Hardware | 120° concealed hinges · 3 point locking | Welded earth studs, M6 cage nuts |
| Finish | Powder coat, any RAL | Coated parts pass 1,000+ hours of salt spray (ISO 9227) |
| Compliance | UL tested designs · ISO 2768 mK tolerances | Serialized labels and QC records per batch |
| Lead time | From 3 weeks out of the UAE | Custom designs quoted after drawing approval |
Built different, and provable.
Panel builders switch to us for three reasons: a coating system proven past 1,000 hours of salt spray, a single factory that owns the whole process, and an envelope we publish and stand behind.
1,000+ hour salt spray
Every panel runs through RO and DI pretreatment ahead of powder coating. Coated parts pass 1,000+ hours of neutral salt spray testing to ISO 9227, proven in the chamber, not claimed on a datasheet.
One roof, no handoffs
Design, fiber laser cutting, punching, panel bending, welding, coating and assembly all happen in our own 75,000 sq ft UAE factory. One team owns quality from CAD file to packed crate.
A published envelope
We quote against a published capability envelope: sheet sizes, thicknesses and tolerances. See the full manufacturing capabilities we put behind every order.
From imported boxes to a UAE built line.
A UAE networking brand replaced imported cabinets with an own branded line built on our floor, cutting lead times to weeks and locking finish quality batch after batch. The same program discipline applies to enclosure fleets.
Questions buyers ask us
What sizes of electrical enclosure can you manufacture?
We build both standard and fully custom sizes, wall mount and floor standing, in single and double door formats. Our laser cutting envelope covers sheets to 3,000 by 1,500 mm in mild steel to 10 mm and stainless to 6 mm, so most practical enclosure dimensions are within reach.
Are your enclosures rated to IP65?
Yes. Our gasketed designs seal to IP65 under IEC 60529, using formed PU gaskets, concealed hinges and gasketed gland plates. Where a project needs ventilation instead, we quote IP54 or IP55 constructions with louvers and filters.
Which material should I choose: GI, CRCA, stainless or aluminium?
GI and CRCA suit most indoor and coated outdoor duty at the best cost. SS304 and SS316 are the right call for coastal, food and laboratory environments, and aluminium wins where weight matters. Our engineers confirm the material during the DFM review of your drawings.
What is the lead time for custom electrical enclosures?
Lead times run from 3 weeks out of the UAE for approved designs. Prototypes and first articles move faster, and repeat batches run on locked tooling with QC records per batch.
Also built on this floor.
Outdoor IP65 Enclosures
Weatherproof enclosures engineered for GCC heat, humidity and coastal salt.
Switchgear and Relay Panels
LV switchgear enclosures and relay panels fabricated to your GA drawings.
Distribution Boards
DB enclosures from 1 to 6 rows at IP41, flush or surface mount.
Need an enclosure built to your drawing?
Send DXF, STEP or PDF and get a DFM review and quotation within two working days.
