Custom Server Racks, Manufactured in the UAE
Ideal Design manufactures server racks and network cabinets in the UAE for data center, ELV and IT integrators across the GCC. Racks run 6U to 42U in 600 and 800 mm widths, delivered assembled or flat pack, with lead times from 3 weeks out of the UAE.
42U and everything around it.
Network cabinets, colocation racks and high density AI ready enclosures for GCC data center and ELV integrators. Perforated high flow doors, custom cable management, busbar and PDU provisions, engineered around the equipment you actually deploy.
We don't make commodity racks. We engineer to your floor plan, your cooling strategy and the load profile of your hardware, then ship assembled or flat packed and fully tested.
Why buy server racks manufactured in the UAE?
Because racks are heavy, bulky and urgent. Importing them means paying to ship air around steel and waiting on a sea schedule, while a UAE factory delivers from 3 weeks out of the UAE and answers the phone in your timezone when the site changes.
Local also means custom is genuinely available. Depth changes for oversized switches, extra cable entry, seismic bracing, non standard colors or your own brand on the front: on an import these are impossible or slow, on our floor they are a drawing revision.
Every rack is built on our fiber laser, turret punch and panel bending lines, welded in jigs and coated on a system whose parts pass 1,000+ hours of salt spray testing, which matters more than it sounds once cabinets reach coastal or edge sites.
Rack specifications at a glance.
| Attribute | Specification | Notes |
|---|---|---|
| Rack heights | 6U to 42U | Wall mount and floor standing |
| Widths | 600 and 800 mm | 800 mm for cable heavy deployments |
| Depths | 600, 800 and 1000 mm | Sized to your deepest equipment plus cabling |
| Static load | Up to 1,500 kg | Reinforced frames for high density IT |

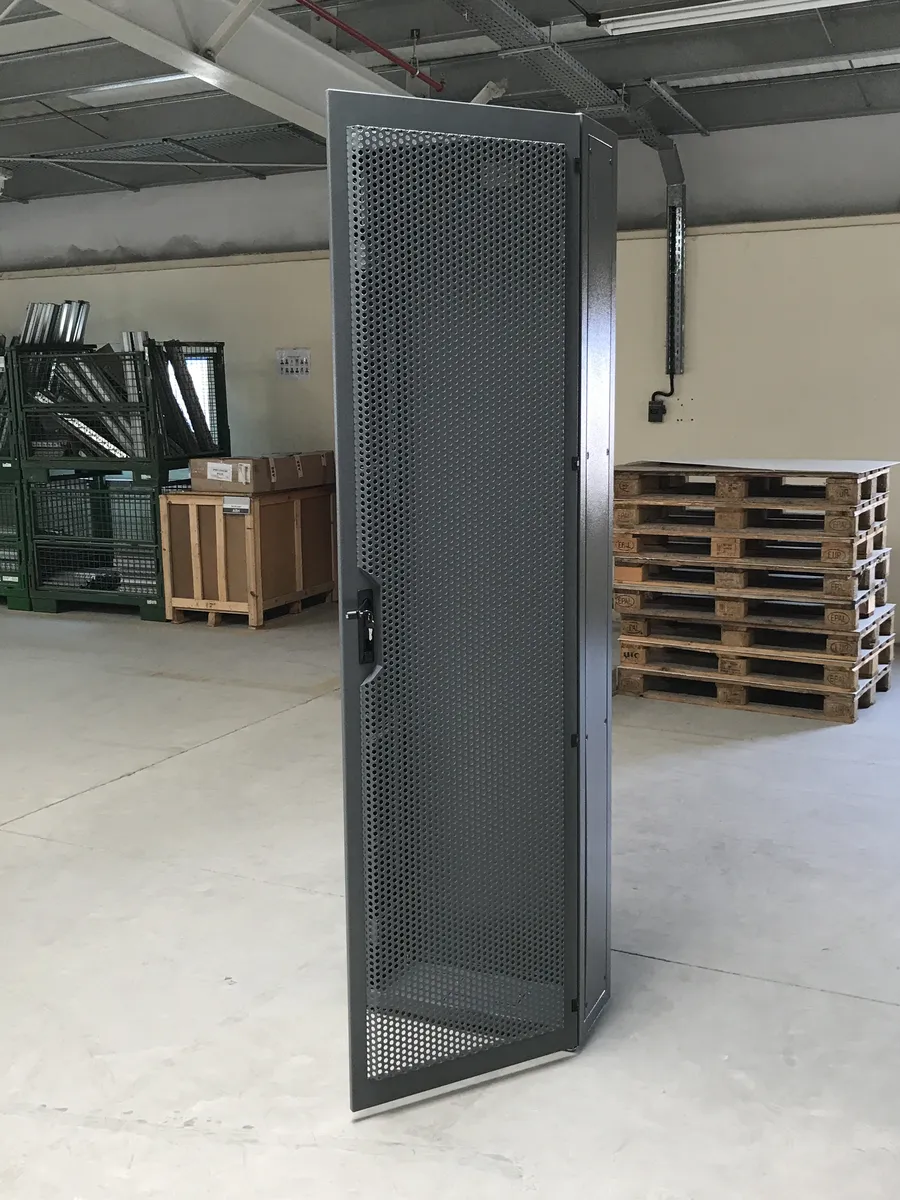

| Doors | Perforated panel · glass · plexiglass | High flow perforation, approximately 63% open area |
| Finish | RAL 9005 / 7035, any RAL available | Coated parts pass 1,000+ hours of salt spray (ISO 9227) |
| Options | Casters · plinth · fan tray · cable entry · PDU provision | Custom cable management engineered to layout |
| Delivery | Assembled or flat pack | Flat pack saves up to 70% freight volume |
| Lead time | From 3 weeks out of the UAE | Custom designs quoted after drawing approval |
Built different, and provable.

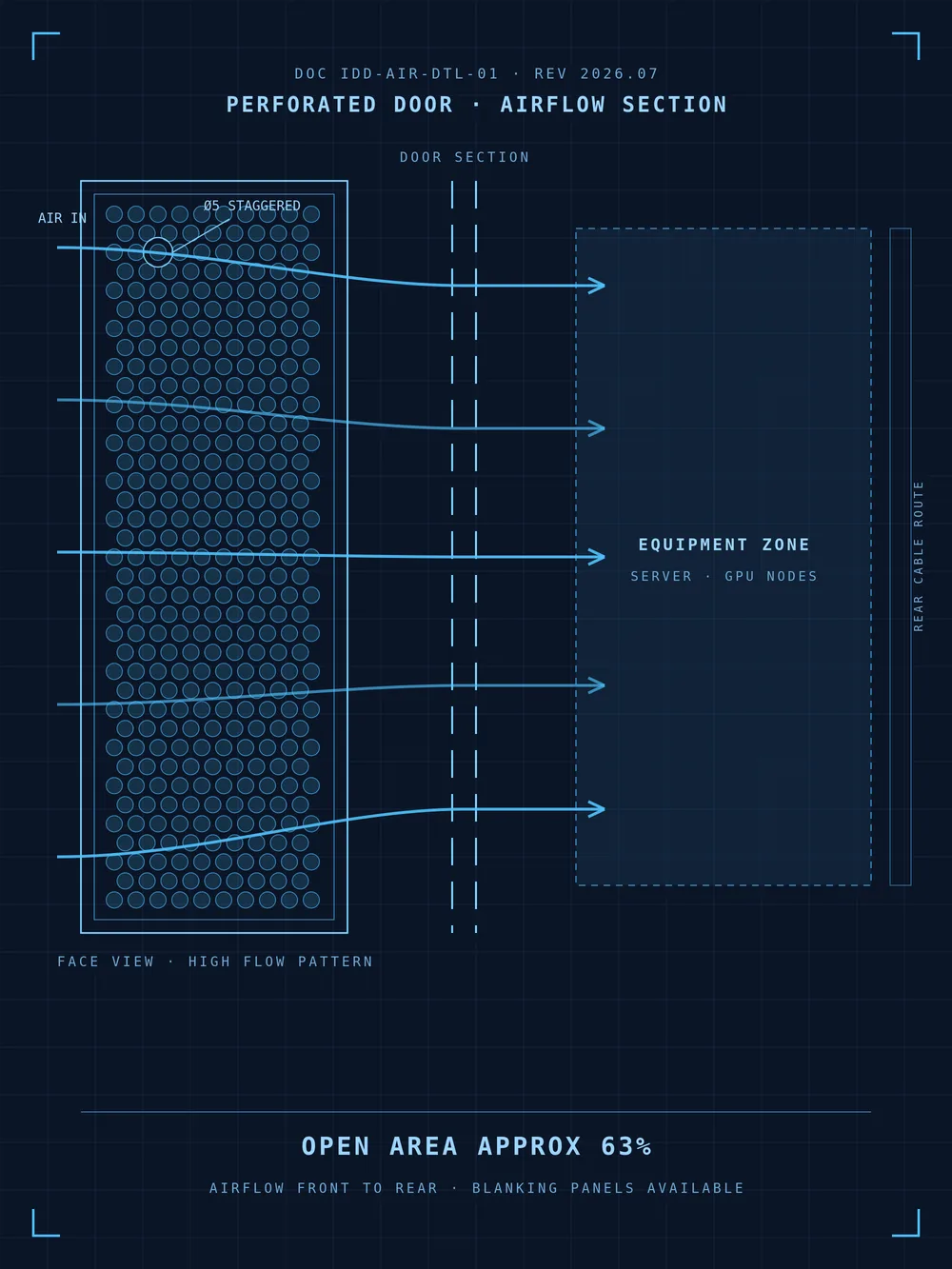

Integrators specify our racks because airflow doors are punched in house to approximately 63% open area, frames carry 1,500 kg without drama, and the factory sits weeks, not months, from their site.
1,000+ hour salt spray
Every panel runs through RO and DI pretreatment ahead of powder coating. Coated parts pass 1,000+ hours of neutral salt spray testing to ISO 9227, proven in the chamber, not claimed on a datasheet.
One roof, no handoffs
Design, fiber laser cutting, punching, panel bending, welding, coating and assembly all happen in our own 75,000 sq ft UAE factory. One team owns quality from CAD file to packed crate.
A published envelope
We quote against a published capability envelope: sheet sizes, thicknesses and tolerances. See the full manufacturing capabilities we put behind every order.
An OEM cabinet line for a UAE networking brand.
A UAE networking brand runs its own branded cabinet range on our floor: locked tooling, in line branding and batch QC, with delivery from 3 weeks out of the UAE. Read how the program replaced imports.
Questions buyers ask us
What is the lead time for custom server racks?
Lead times run from 3 weeks out of the UAE for standard configurations. Fully custom designs are quoted with their own schedule after drawing approval.
Should I order racks assembled or flat pack?
Order assembled when the racks go straight into a nearby facility, and flat pack when freight cost or route handling matters. Flat pack cuts shipping volume by up to 70% and each unit assembles quickly on site with basic tools.
What load can the racks carry?
Floor standing frames carry up to 1,500 kg static load, which covers dense server and battery deployments. Tell us the actual equipment schedule and we confirm the frame, plinth and caster specification against it.
Can you brand racks for our company?
Yes. OEM branding is a core part of the line: your powder color, badges, silkscreen and labels applied in production, protected by NDA and revision control. Several regional IT brands sell cabinets manufactured on our floor.
Also built on this floor.
Data Center Cabinets
Bayed, fleet consistent cabinet rows for GCC facilities.
AI Ready Racks
Reinforced high airflow racks for GPU and HPC deployments.
Network and Open Frame Racks
Wall mount cabinets and open frames for ELV fit outs.
Fitting out a data room or a data hall?
Send the equipment schedule and the floor plan. We'll return a rack configuration and a number within two working days.
